LED Light Bar
Brighter forward lighting for early starts, late finishes, and better visibility on the job.
Standard on Apollo

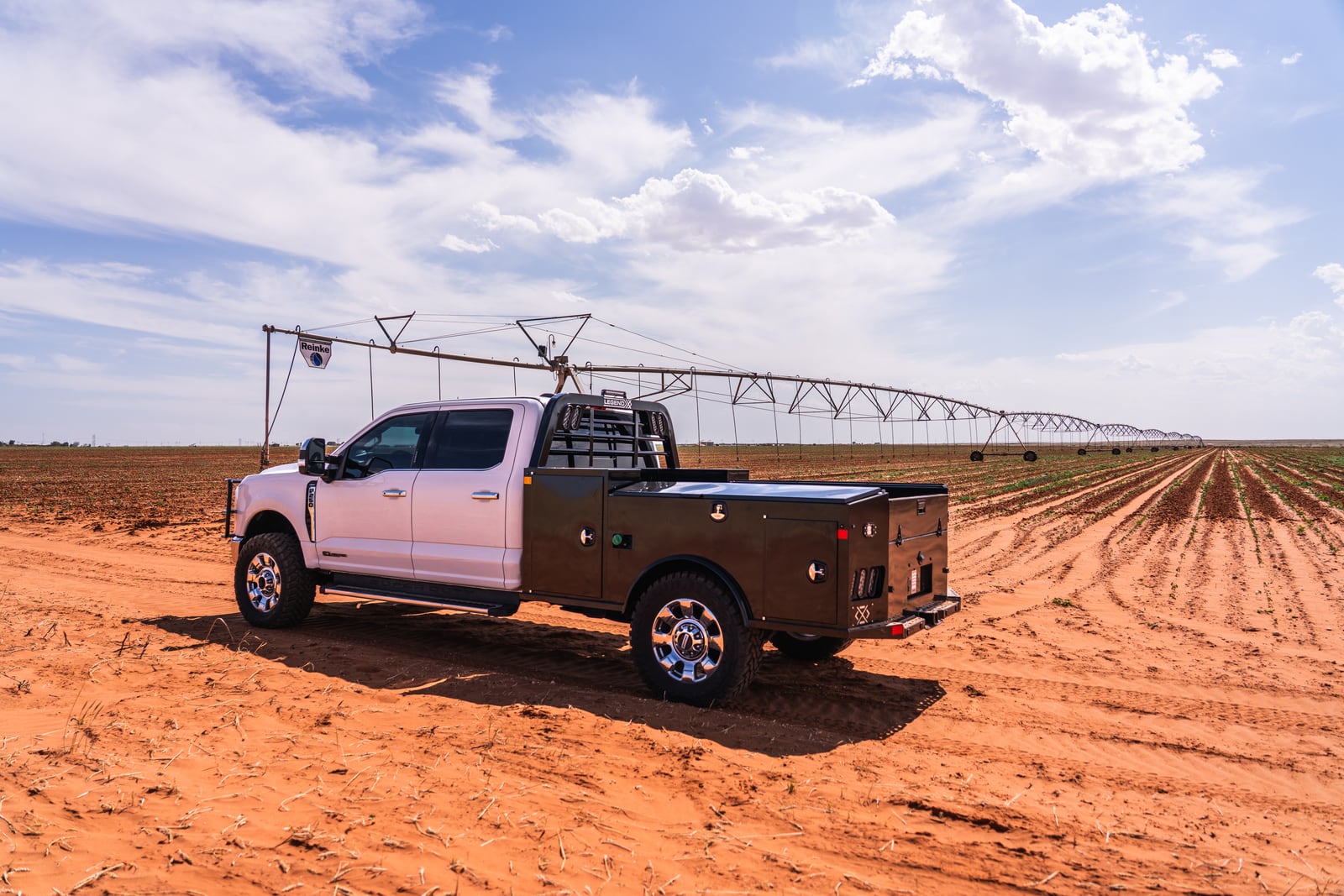

Gooseneck Service Body

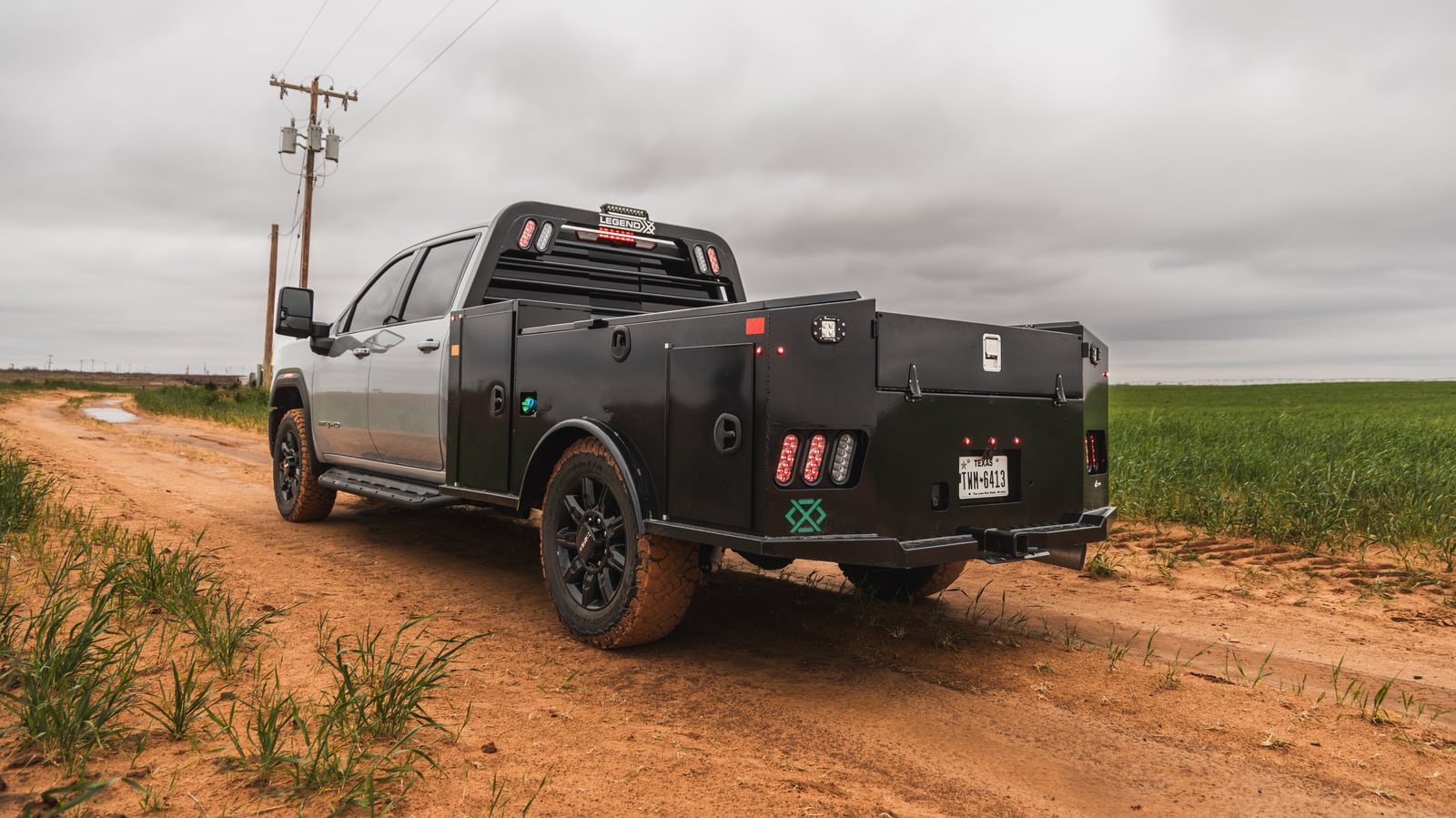

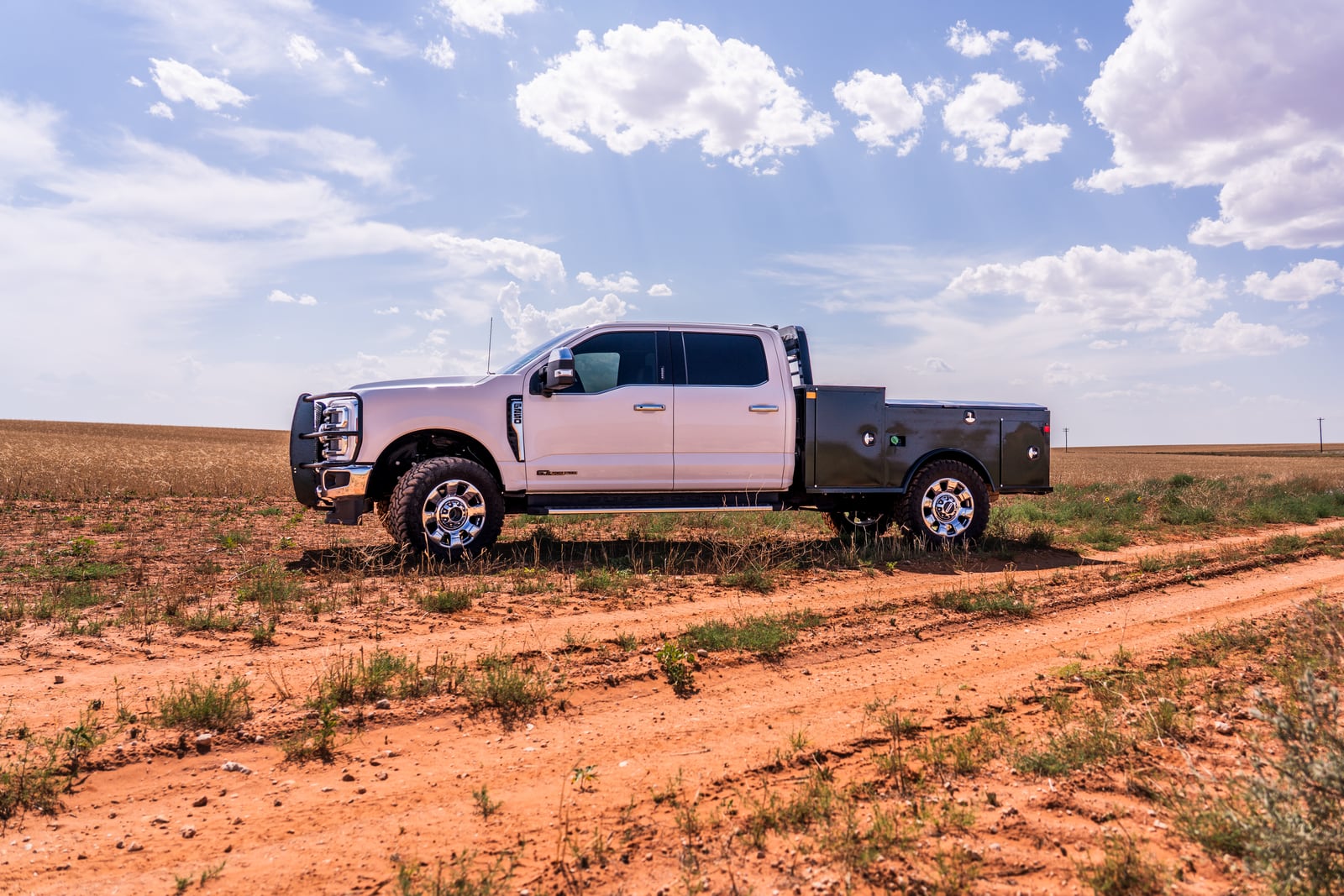

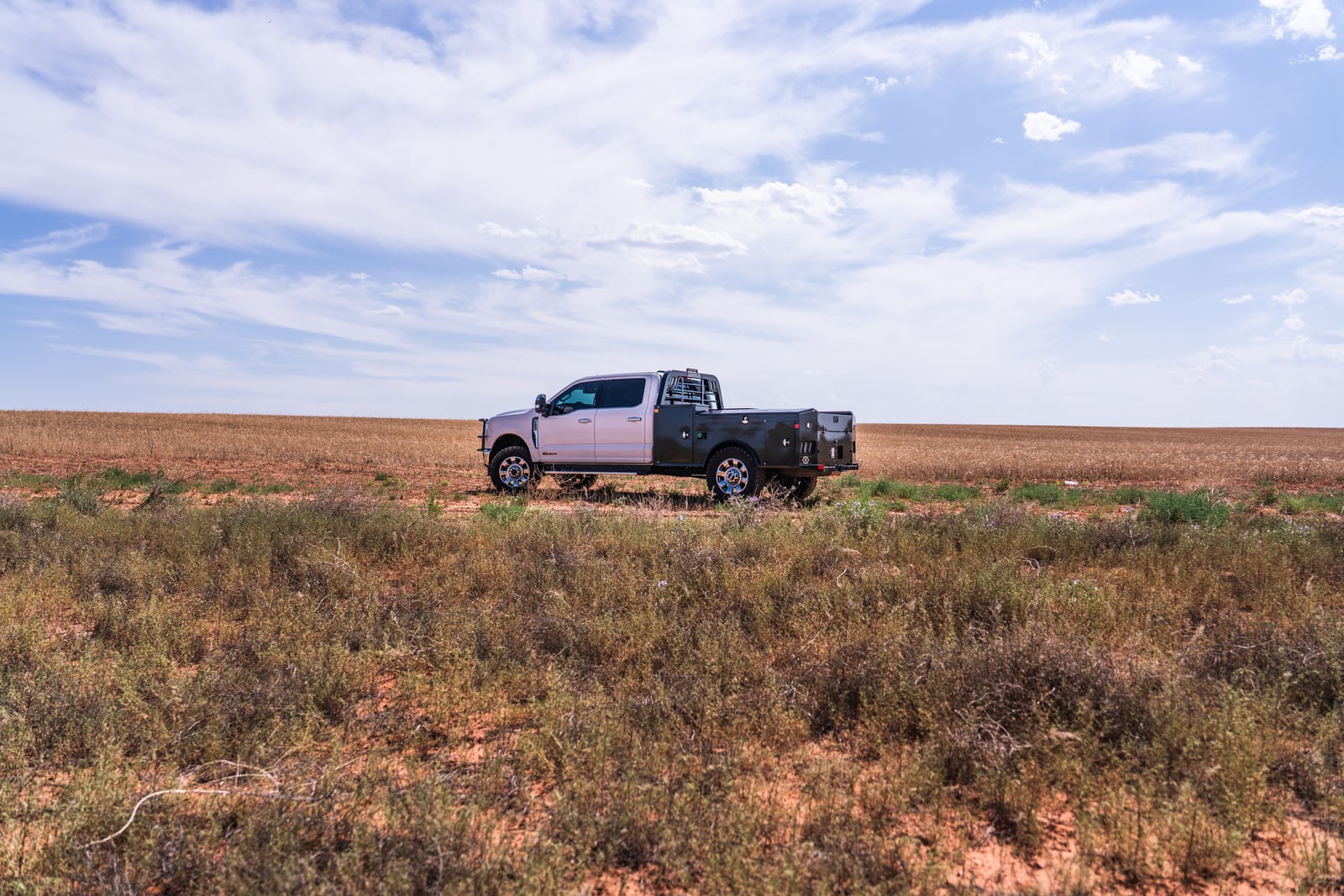

Apollo
Six lockable boxes. A pallet still fits down the middle.Built for tool-heavy field work, Apollo puts six lockable boxes around a center path wide enough for a standard pallet.
Available lengths7' 0" · 8' 6" · 9' 4" · 11' 4"
Why Apollo
Field crews carrying tools and palletized material.
Apollo fits field crews that carry a broad tool set and pick up palletized material, feed, parts, or supplies during the same workday. It is the storage-and-cargo choice for crews whose smaller equipment and larger loads travel together.
Confirm before ordering. Pallet dimensions and load weights vary. Confirm clearances, securement, available payload, and the complete installed vehicle configuration.
Product features
Carry the load through the lowered tailgate.
A standard pallet can pass between the boxes with the tailgate lowered. Three LED work lights illuminate the deck, while enclosed tool zones, rotating tie-downs, and integrated towing hardware support loading, securement, and trailer connection.

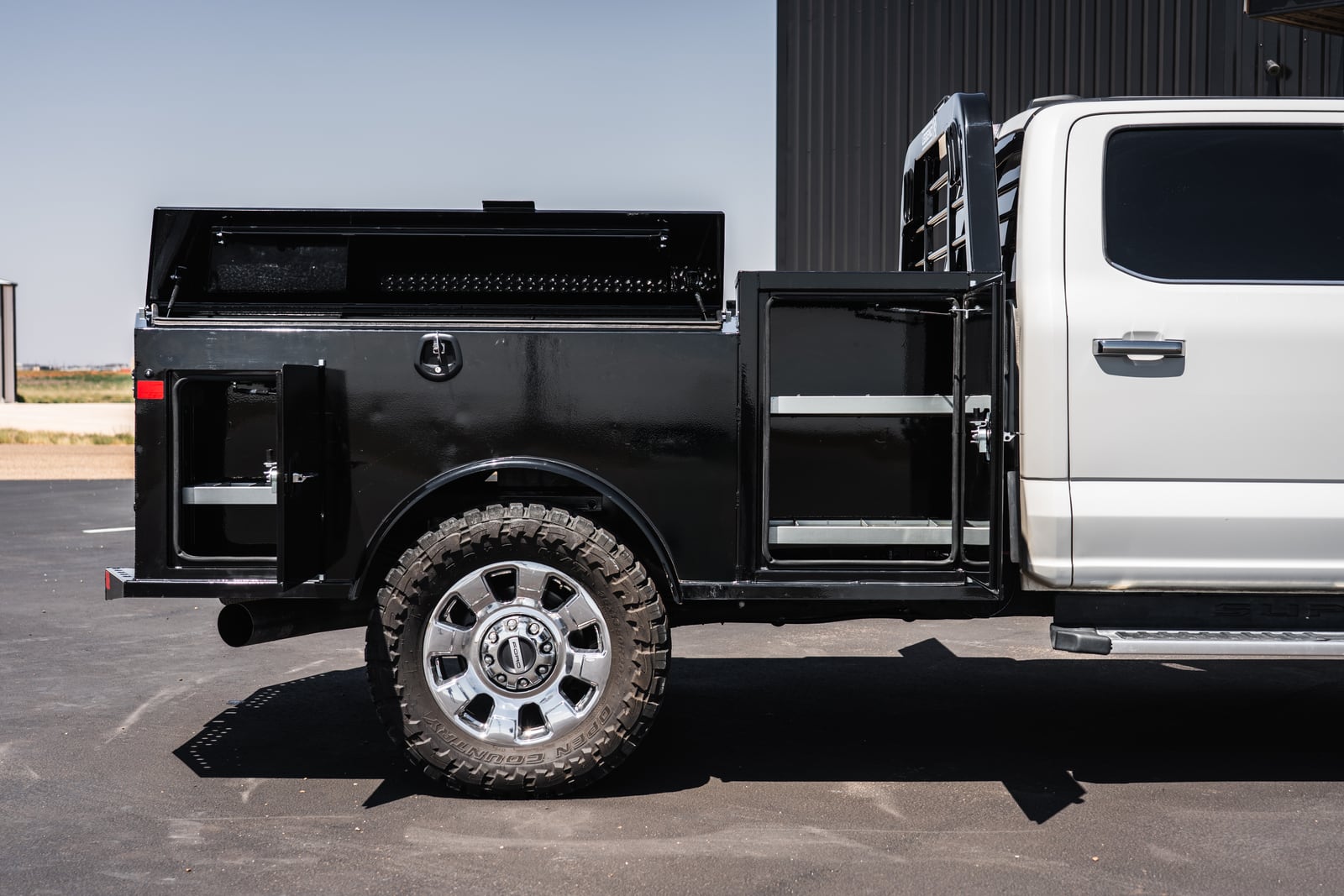

6-Box Arrangement

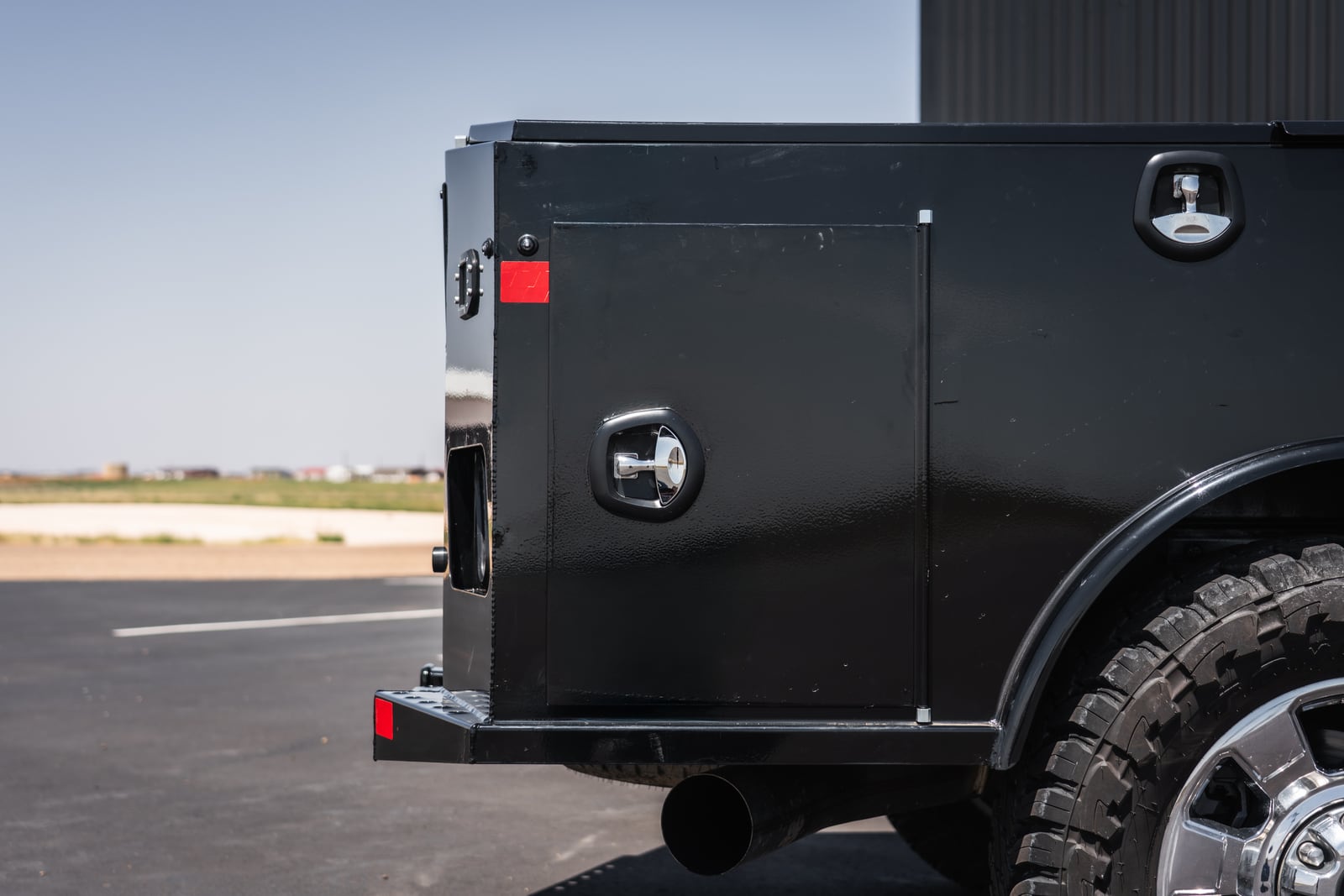

Four side compartments and two top-opening boxes divide tools into enclosed zones around the center deck.

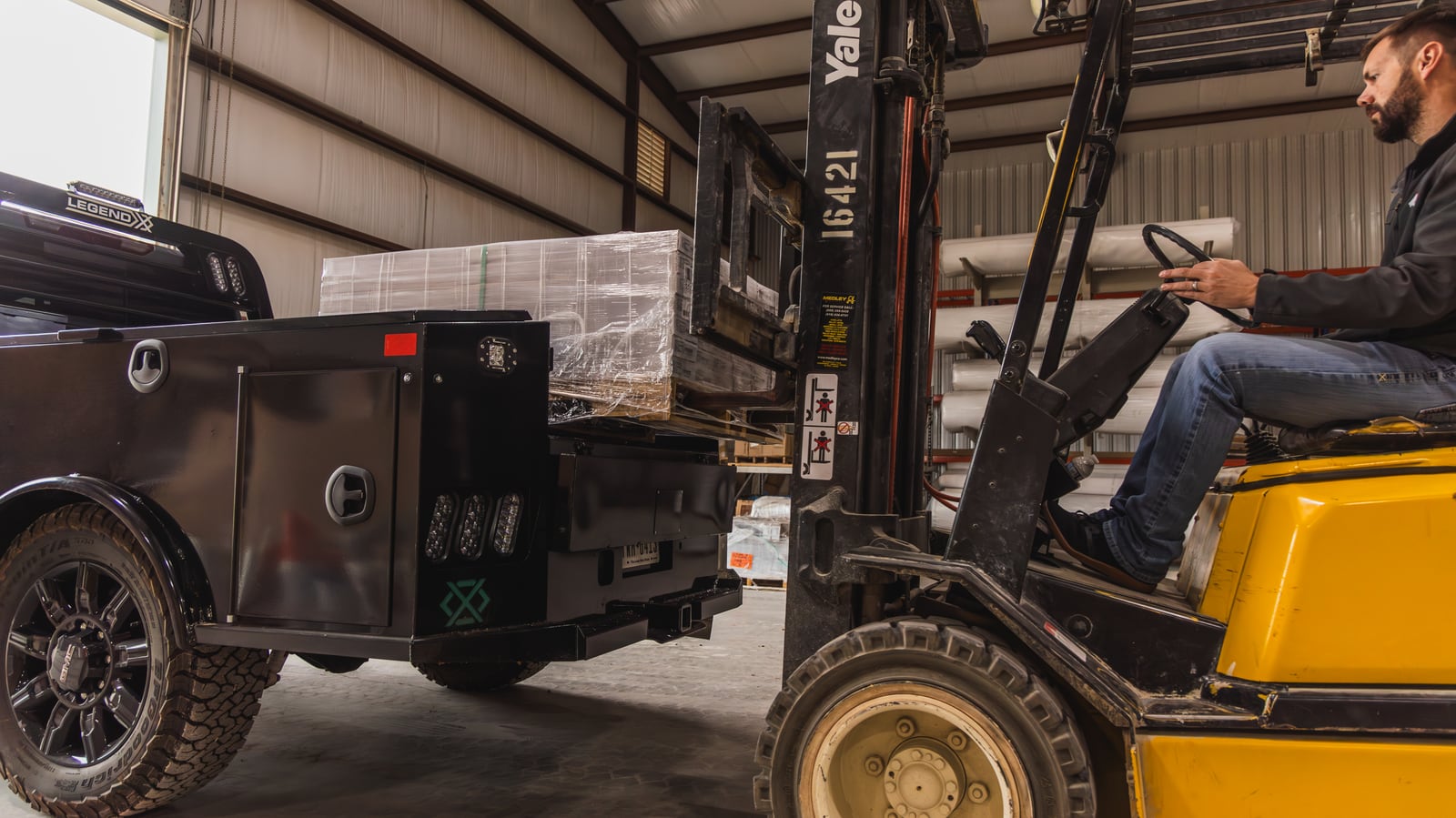

Standard-Pallet Center Path
Lower the tailgate and a standard pallet can pass between the boxes onto the center deck.

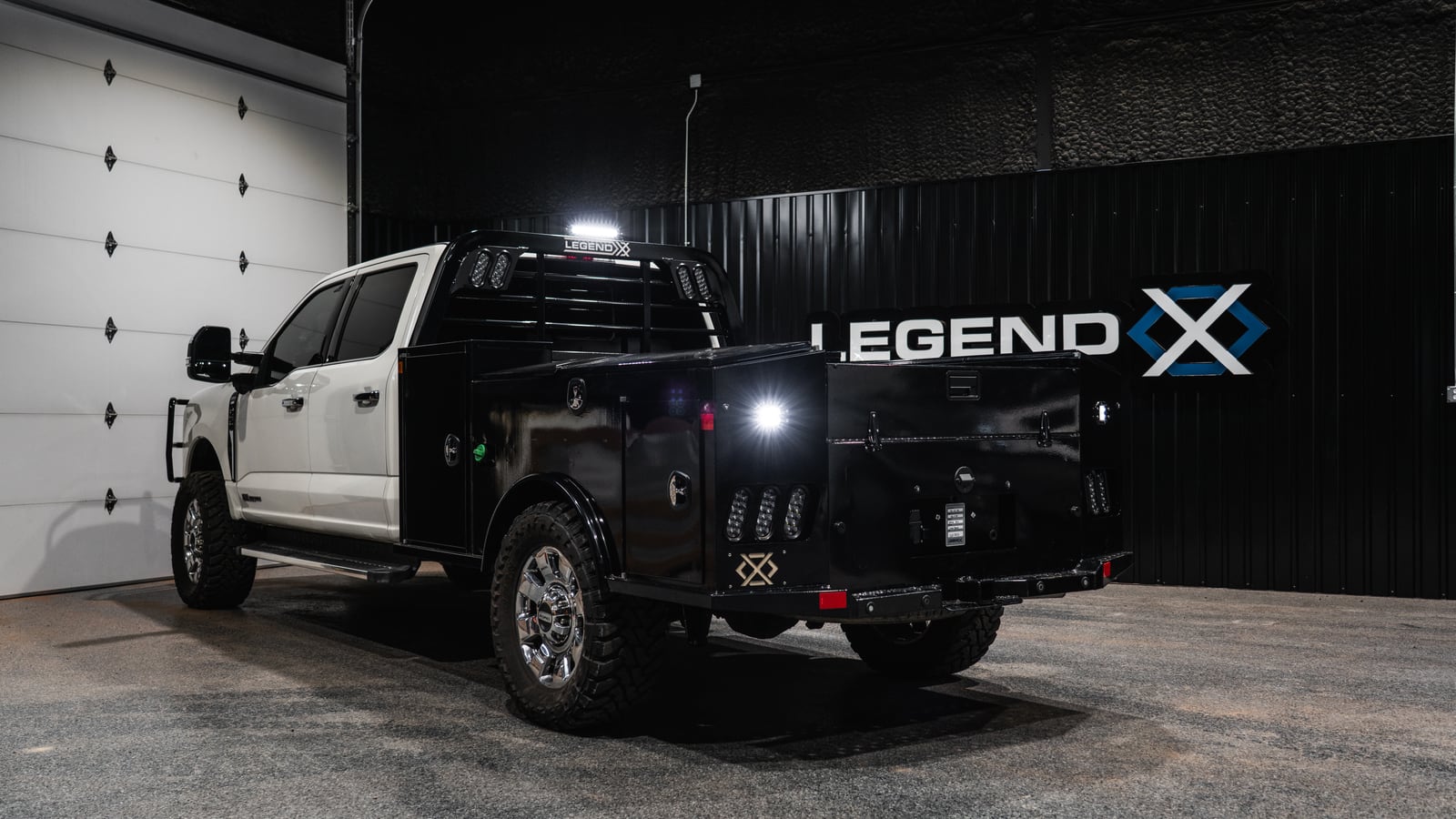

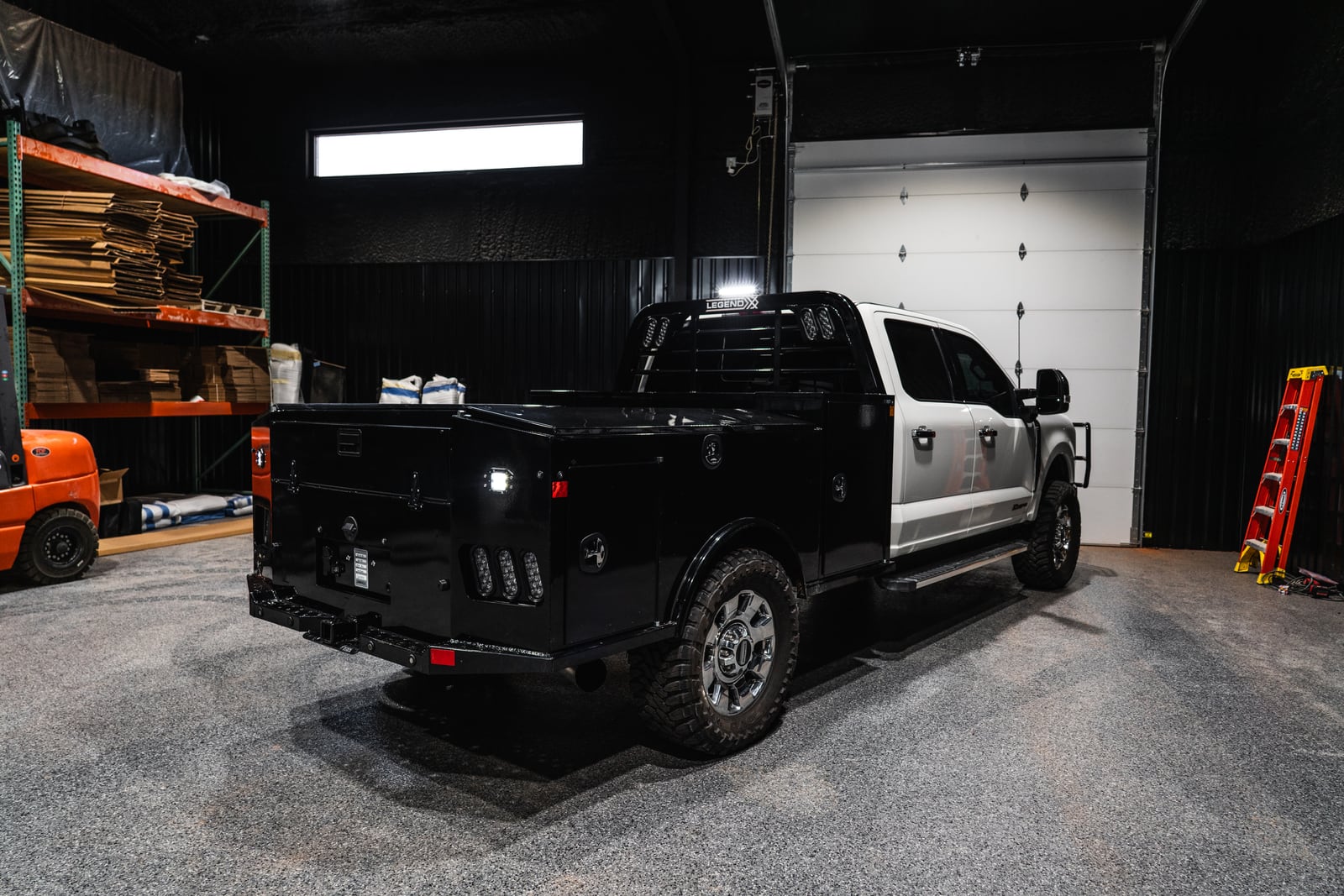

3 LED Work Lights
One work light on the headache rack and two on the tailboard illuminate the work area after dark.
Built around the center deck
A structural center deck carries the load between six perimeter boxes.
Four side compartments and two top-opening boxes form the six-box arrangement around the structural center deck. The deck carries the load through the body while the perimeter boxes separate the tool load from the cargo surface.
Apollo Walk-Around
See the Apollo at Work
See the six-box layout, center deck, work lights, and towing hardware, then open the Apollo gallery for more views.
Details
Apollo specifications.
Your dealer or upfitter confirms body length, options, fitment, and installation for the final truck.
Apollo details

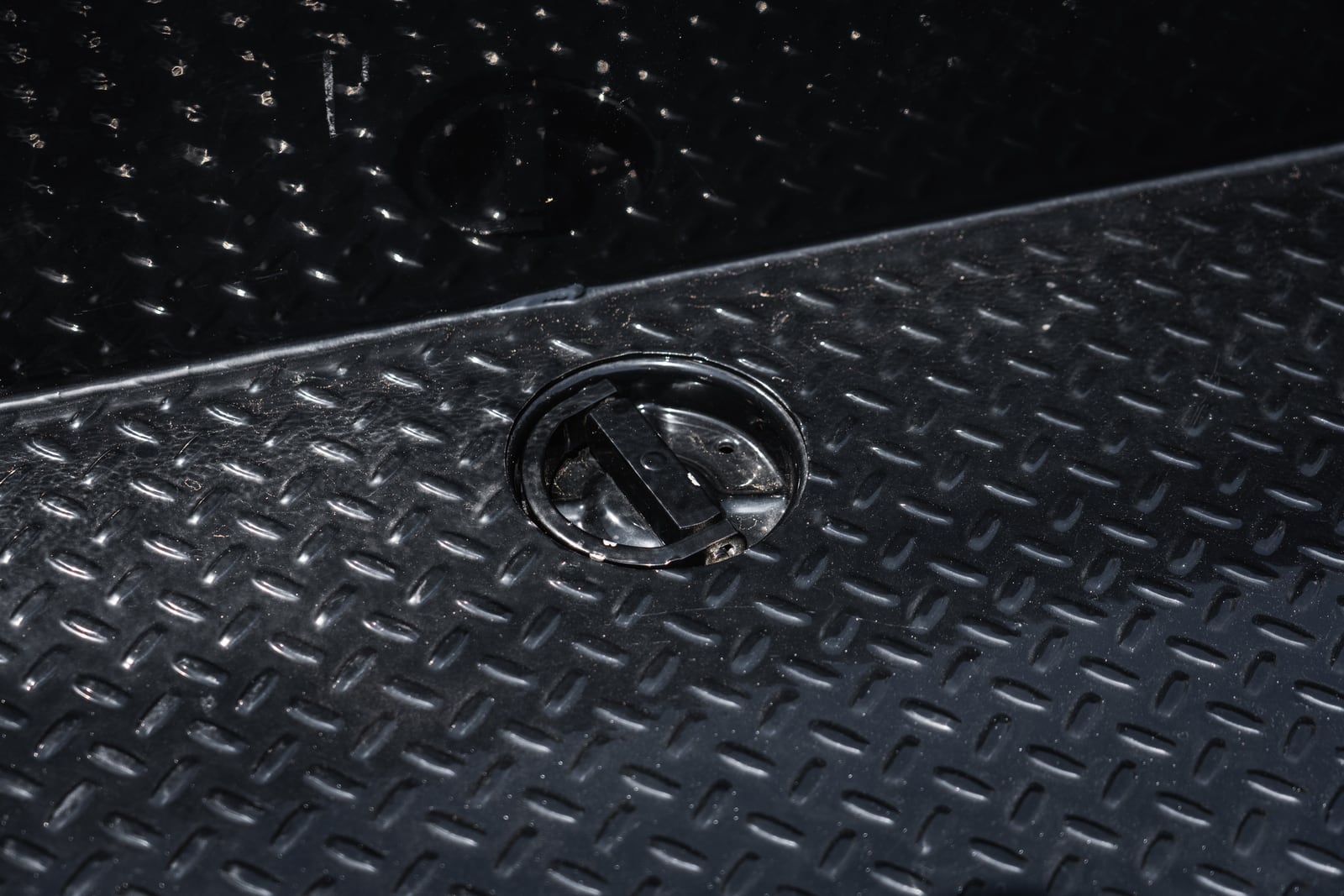

4 Flush-Mounted 360° Rotating D-Rings
Low-profile rotating D-rings provide versatile strap angles and secure load anchoring.
Shared Legend X platform
3 1/2" Integrated Tube Headache Rack
The integrated 3 1/2" tube design adds durable support and protection.
Durable Powder-Coated Finish
A high-quality powder coating covers the bed for a durable, long-lasting finish.
4" Structural Steel Channel Frame Rails
Solid 4" structural steel channel frame rails provide strength, durability, and internal rust prevention without roll-formed runners.
1/8" Steel Treadplate Deck
A durable 1/8" steel treadplate deck is built for heavy-duty work conditions.

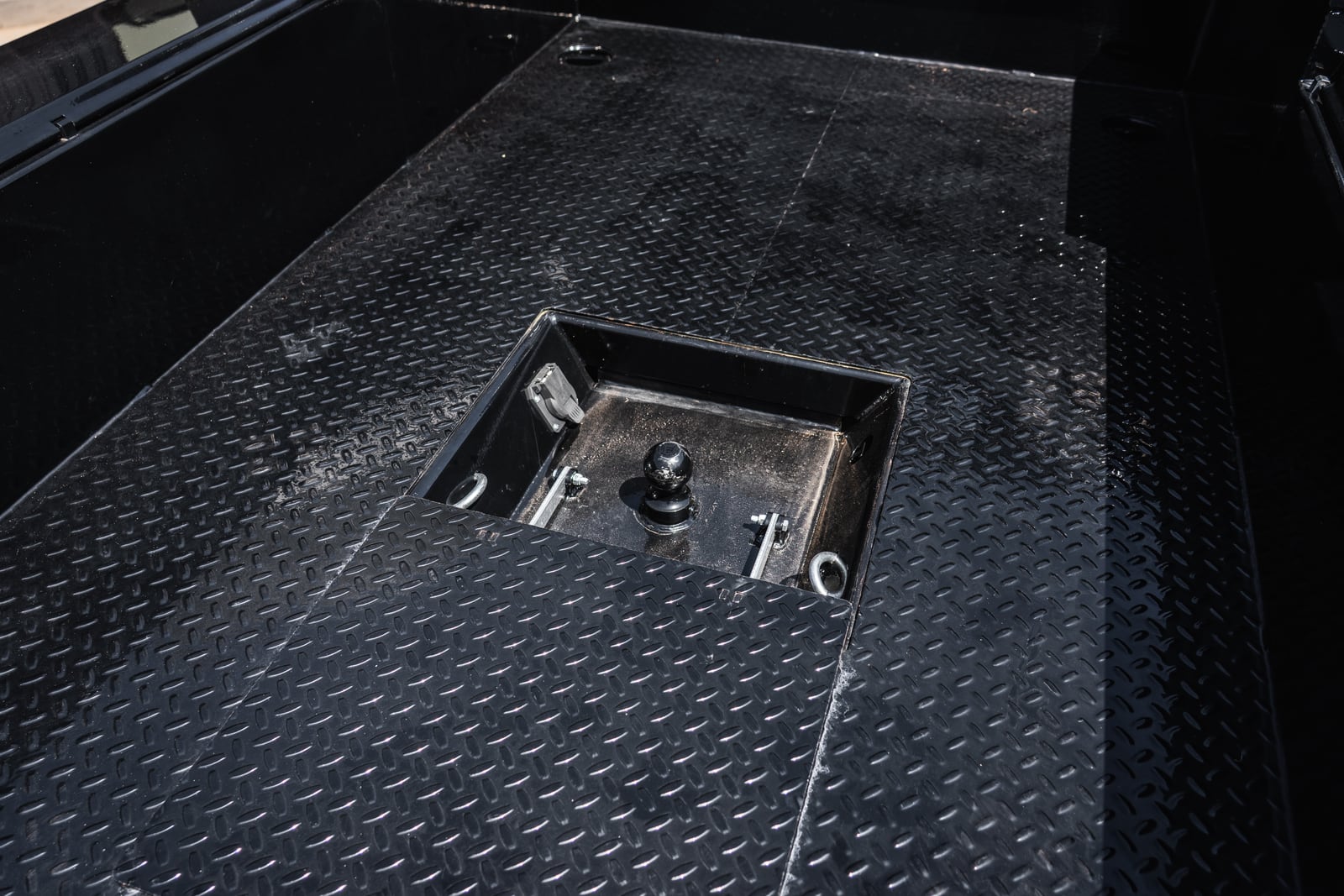

30,000 lb. Rated Gooseneck Hitch
An independently tested gooseneck hitch provides dependable hauling capability and includes a 7-way electrical connection.
Modular Sealed Wiring Harness
The sealed wiring harness is built to resist corrosion, wear, and disconnection in demanding conditions.
24,000 lb. Rated Bumper Pull Hitch
A standard 2.5" bumper pull hitch integrates into the frame for dependable towing capacity.

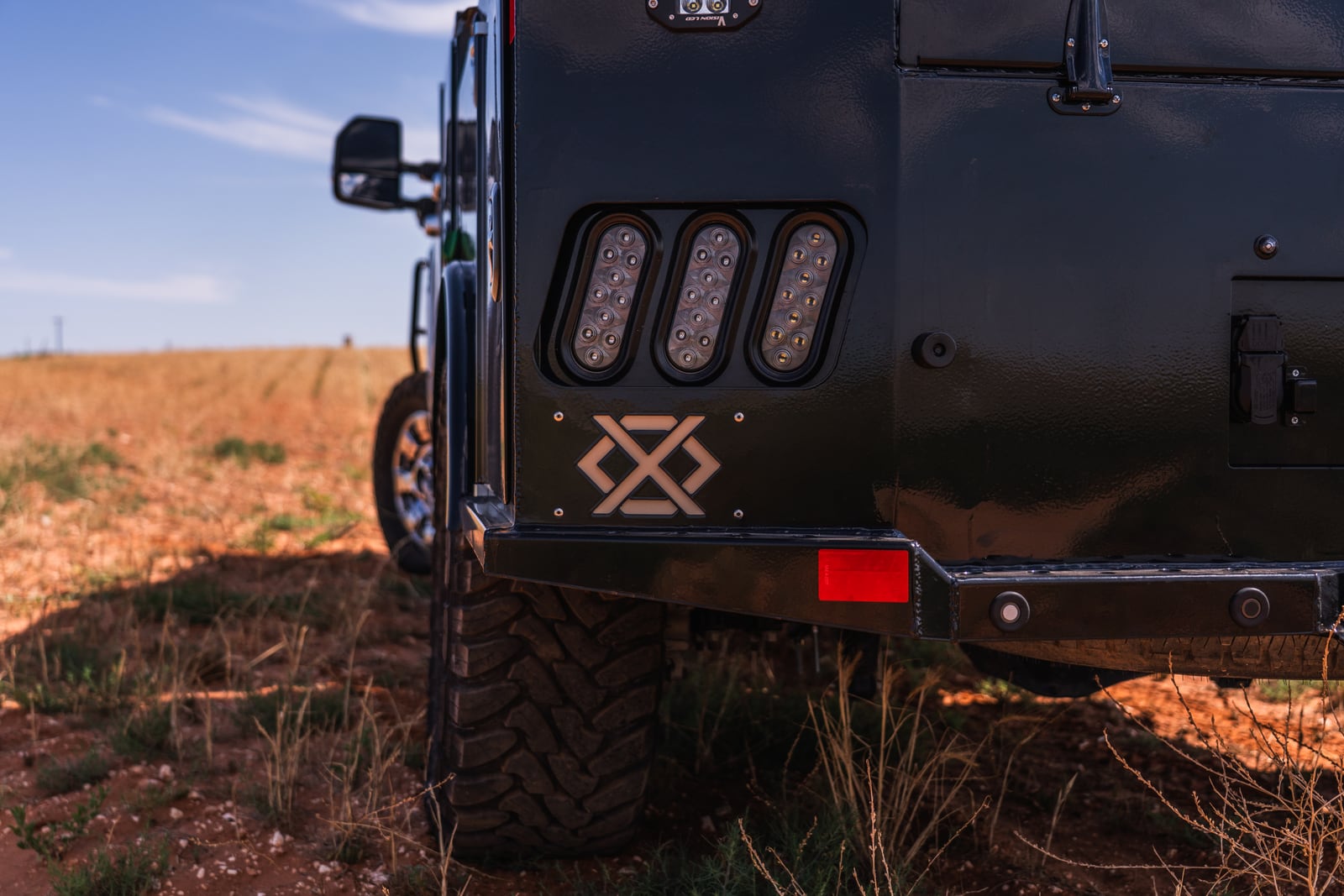

Standard 7-Way Round Rear Plug
A 7-way round plug on the rear tailboard supports trailer connectivity.
Photos
Apollo gallery.
Color Match
Color-match finish gives the bed a more custom, integrated look with your truck.
Available on All Models
Bale Spike Package
Hydraulic bale spike package with quick setup and clean under-bed storage when not in use.
Available on Spartan, Viking, Viking Pro, Apollo
3/16" Tread Plate Floor
Heavier-duty tread plate floor built for tougher loads and long-term durability.
Available on All Models
Flush Mount B&W Turnover Ball
Clean, flush-mount gooseneck towing setup that stays out of the way when not in use.
Available on All ModelsStandard on Titan
Mudflaps (SRW & DRW)
Fitted mudflaps for single- and dual-rear-wheel trucks, mounted to the standard brackets.
Available on All Models

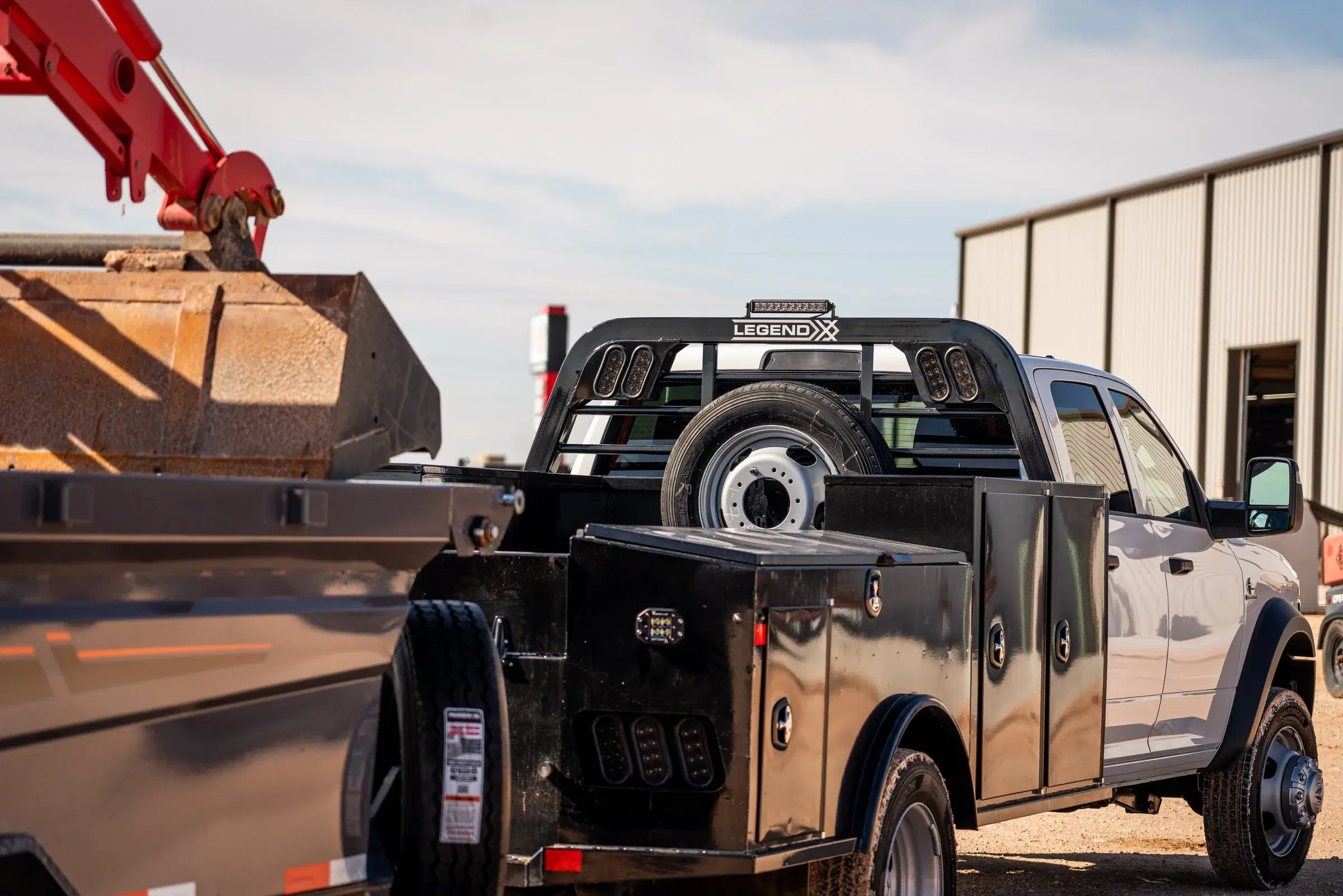

Spare Tire Mount
Keeps a spare tire securely mounted and ready when the job takes you farther out.
Available on All ModelsStandard on Cab & Chassis Models
Next step
Confirm your Apollo setup.
Share your truck details, product configuration, mounted equipment, and towing needs. A participating dealer can confirm fitment, installation, final price, and availability.
Review financing options before the final order is placed.
