LED Light Bar
Brighter forward lighting for early starts, late finishes, and better visibility on the job.
Available on Spartan, VikingStandard on Titan, Apollo, Viking Pro
Non-Skirted Flatbed
Spartan
A non-skirted flatbed built to be configured.Across 7' 0", 8' 6", 9' 4", and 11' 4" lengths, Spartan leaves the body unskirted so an upfitter can plan storage or mounted equipment around the chassis.
Available lengths7' 0" · 8' 6" · 9' 4" · 11' 4"
Why Spartan
Operators who choose their own equipment layout.
Start with the truck, the work, and the equipment list. Then decide with an upfitter where storage and mounted equipment belong.
Confirm before ordering. Have the dealer or upfitter confirm payload, weight distribution, dimensions, clearances, and mounting for all added equipment.
Product features
Put equipment where it earns its space.
Plan underbody boxes, top-mounted boxes, a generator, welder, or feeder—or keep the body simpler for direct side loading and tie-down access.

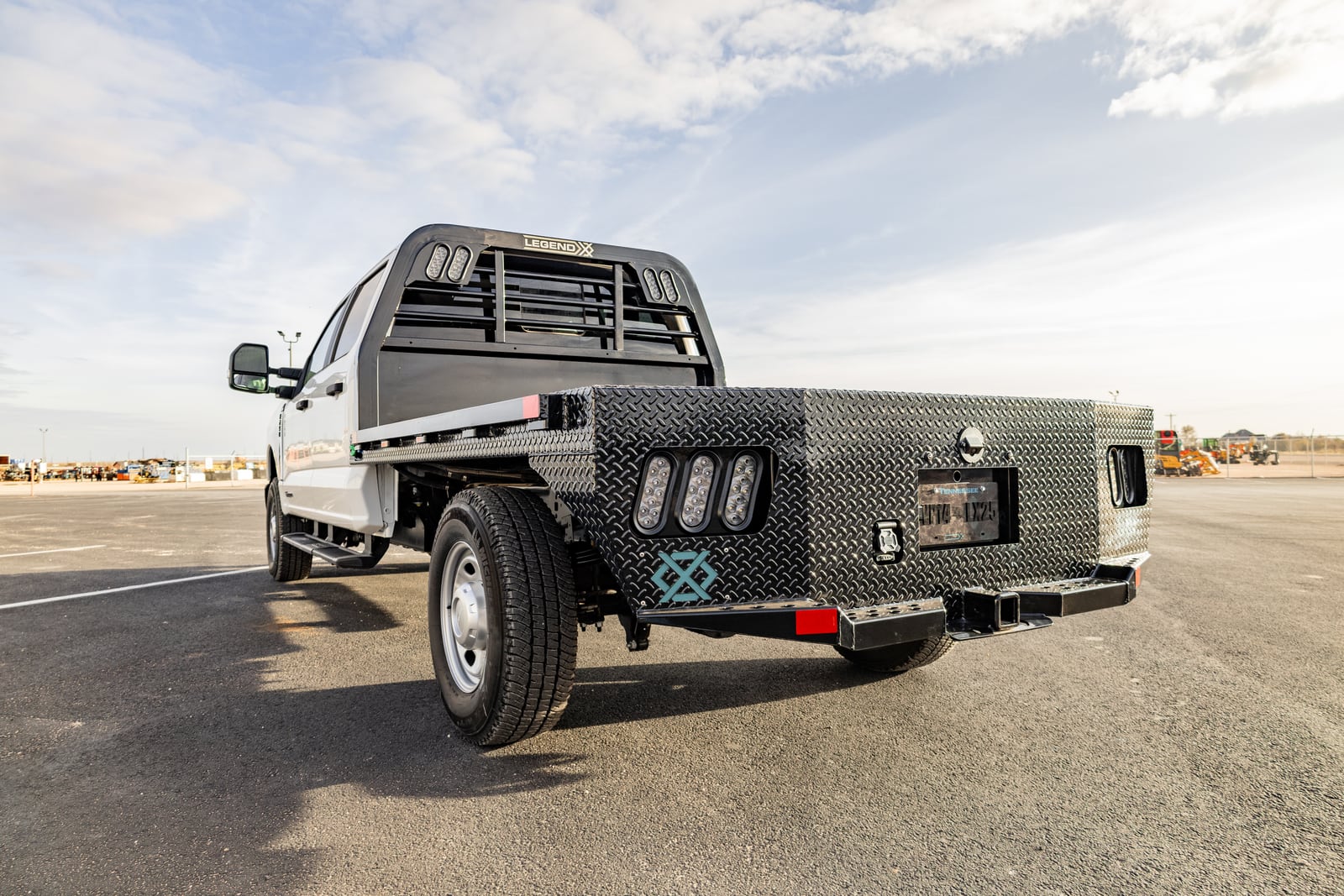

Diamond-Plated Rear Skirt
The diamond-plated rear skirt incorporates a sturdy step for dependable bed access.

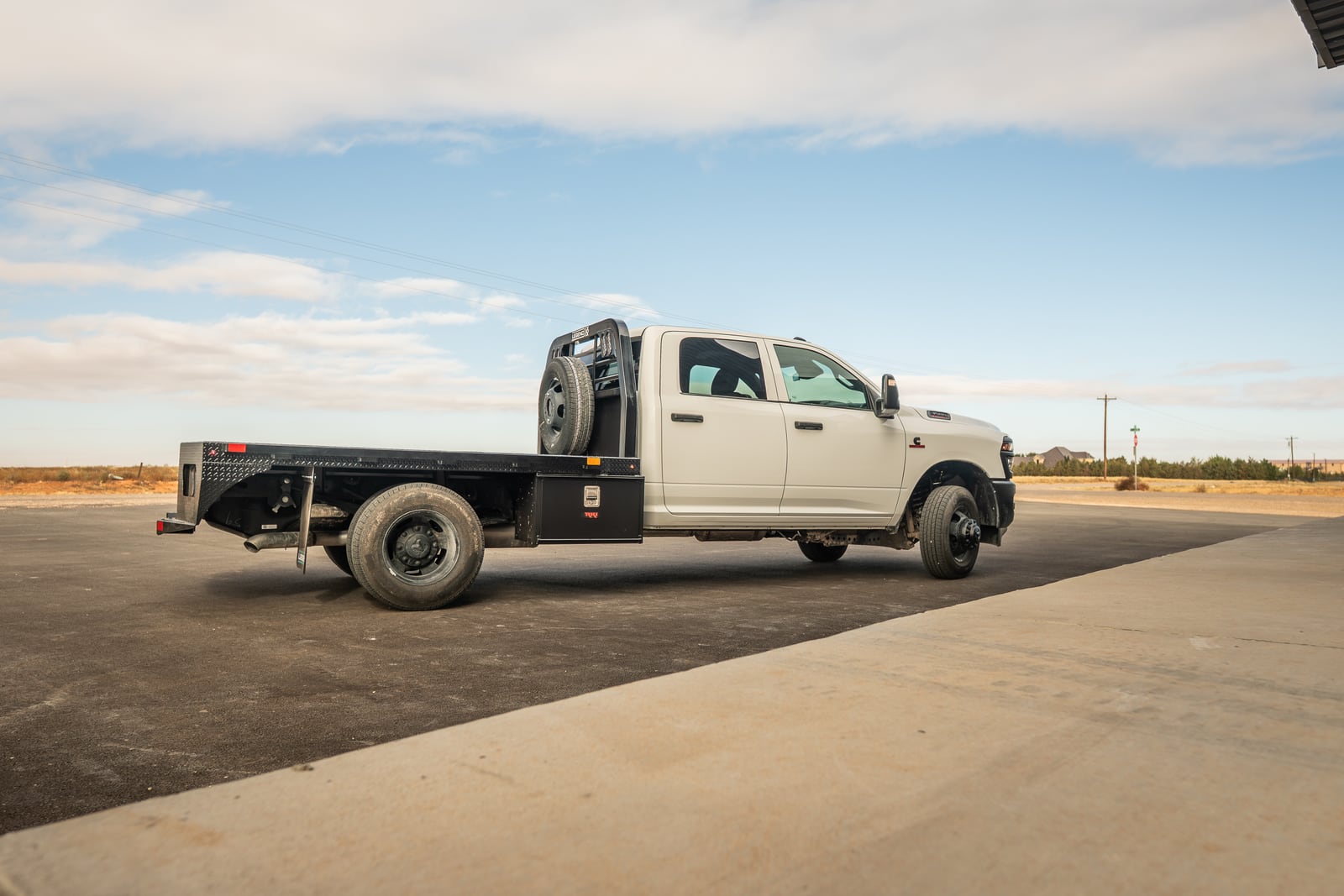

Side Rails with Stake Pockets
Side rails and stake pockets provide multiple tie-down points for securing different kinds of cargo.
Configurable Equipment Space
The unskirted sides leave room for an upfitter to plan compatible underbody boxes, top boxes, a generator, welder, feeder, or a simpler body without added equipment.
Structure below the surface
Keep reinforcement under the working surface.
The frame and crossmembers reinforce the working surface from below, leaving the sides available for an upfitter-planned equipment layout.
Spartan Walk-Around
See the Spartan at Work
Take a full walk around the non-skirted Spartan and see the cargo surface, towing structure, side rails, and rear step.
Details
Spartan specifications.
Your dealer or upfitter confirms body length, options, fitment, and installation for the final truck.
Spartan details
Structural Side Rails
Side rails measuring 1.5" wide by 3" high help keep cargo secure while providing additional tie-down points.
Shared Legend X platform
3 1/2" Integrated Tube Headache Rack
The integrated 3 1/2" tube design adds durable support and protection.
Durable Powder-Coated Finish
A high-quality powder coating covers the bed for a durable, long-lasting finish.
4" Structural Steel Channel Frame Rails
Solid 4" structural steel channel frame rails provide strength, durability, and internal rust prevention without roll-formed runners.
1/8" Steel Treadplate Deck
A durable 1/8" steel treadplate deck is built for heavy-duty work conditions.

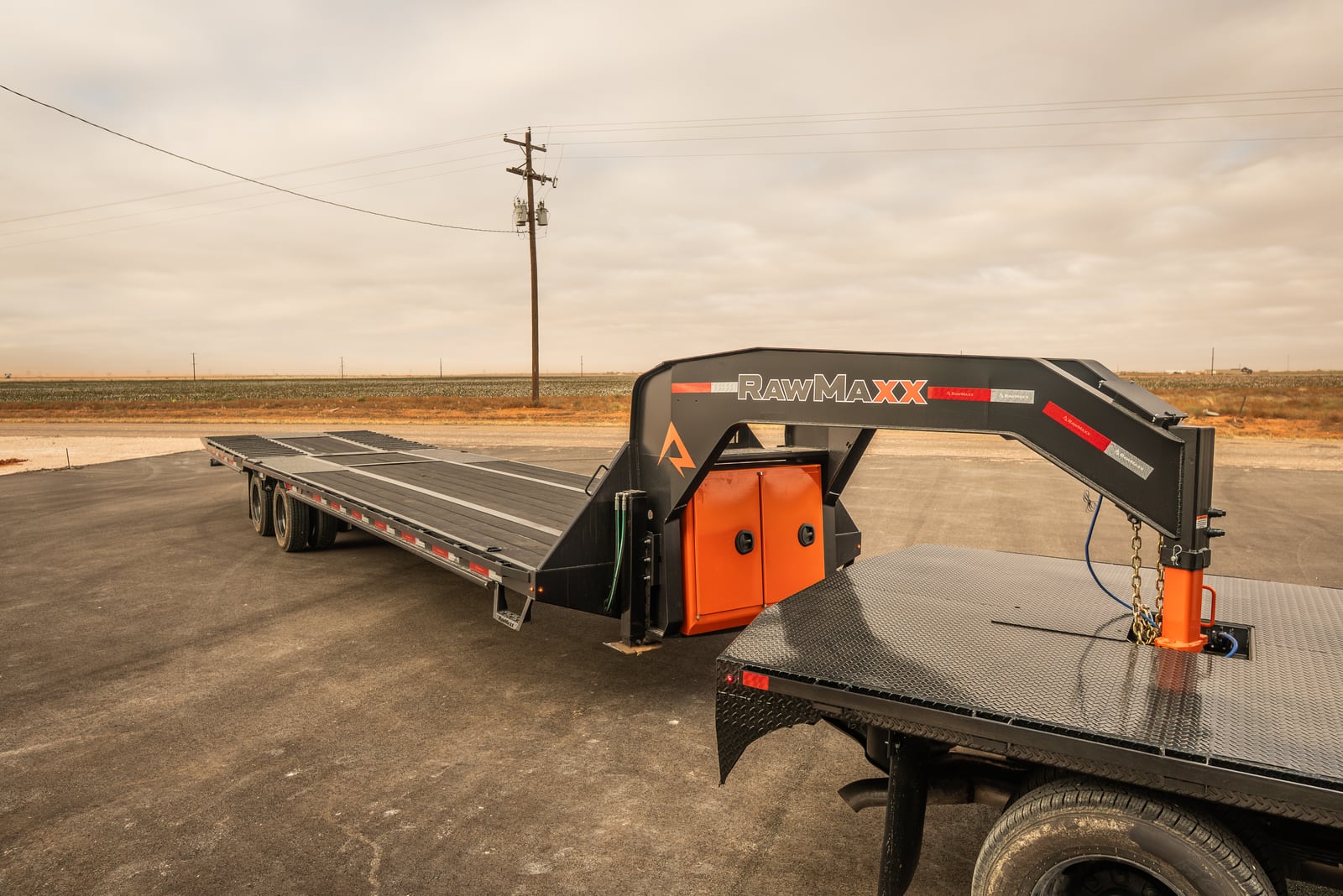

30,000 lb. Rated Gooseneck Hitch
An independently tested gooseneck hitch provides dependable hauling capability and includes a 7-way electrical connection.
Modular Sealed Wiring Harness
The sealed wiring harness is built to resist corrosion, wear, and disconnection in demanding conditions.
24,000 lb. Rated Bumper Pull Hitch
A standard 2.5" bumper pull hitch integrates into the frame for dependable towing capacity.
Standard 7-Way Round Rear Plug
A 7-way round plug on the rear tailboard supports trailer connectivity.

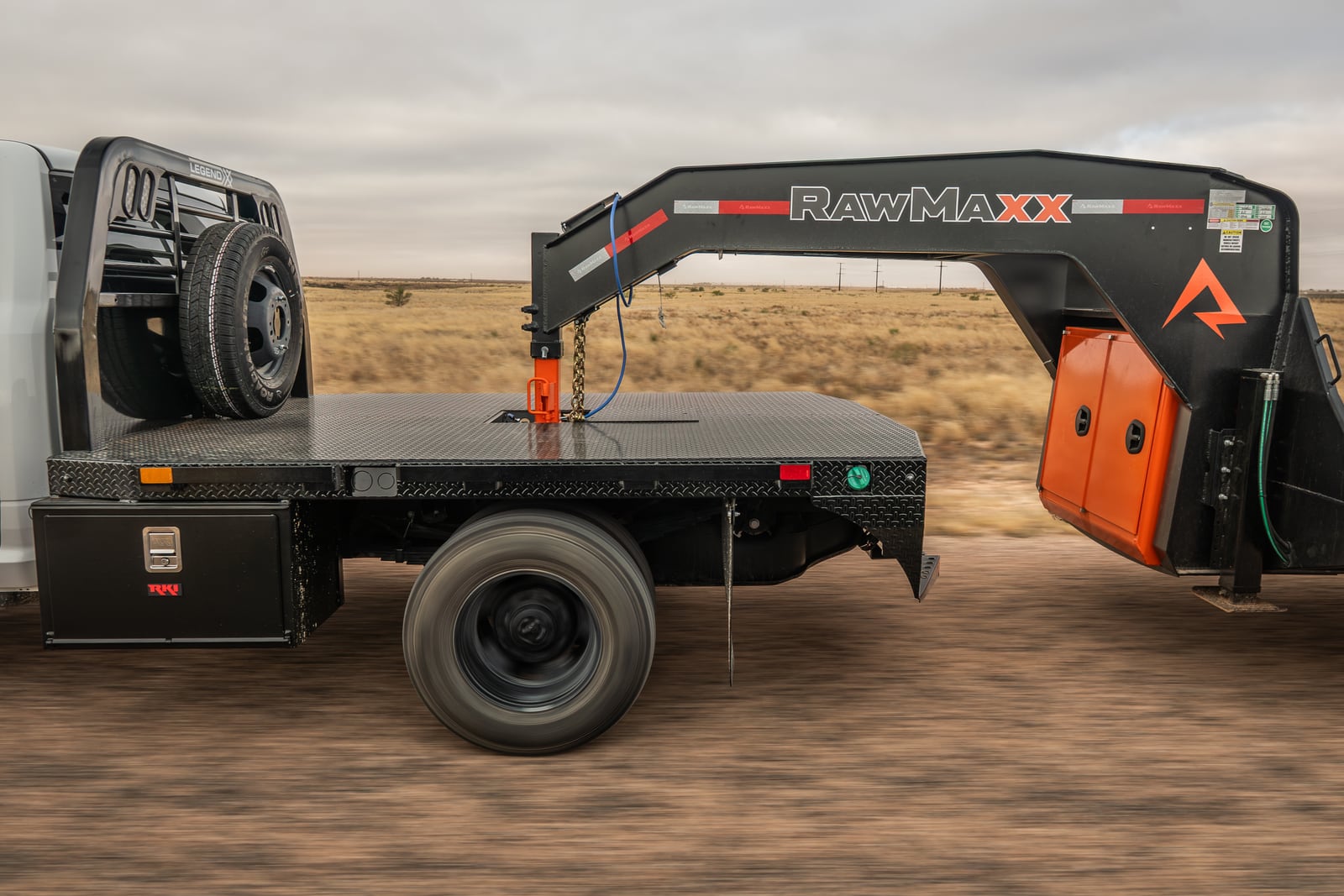

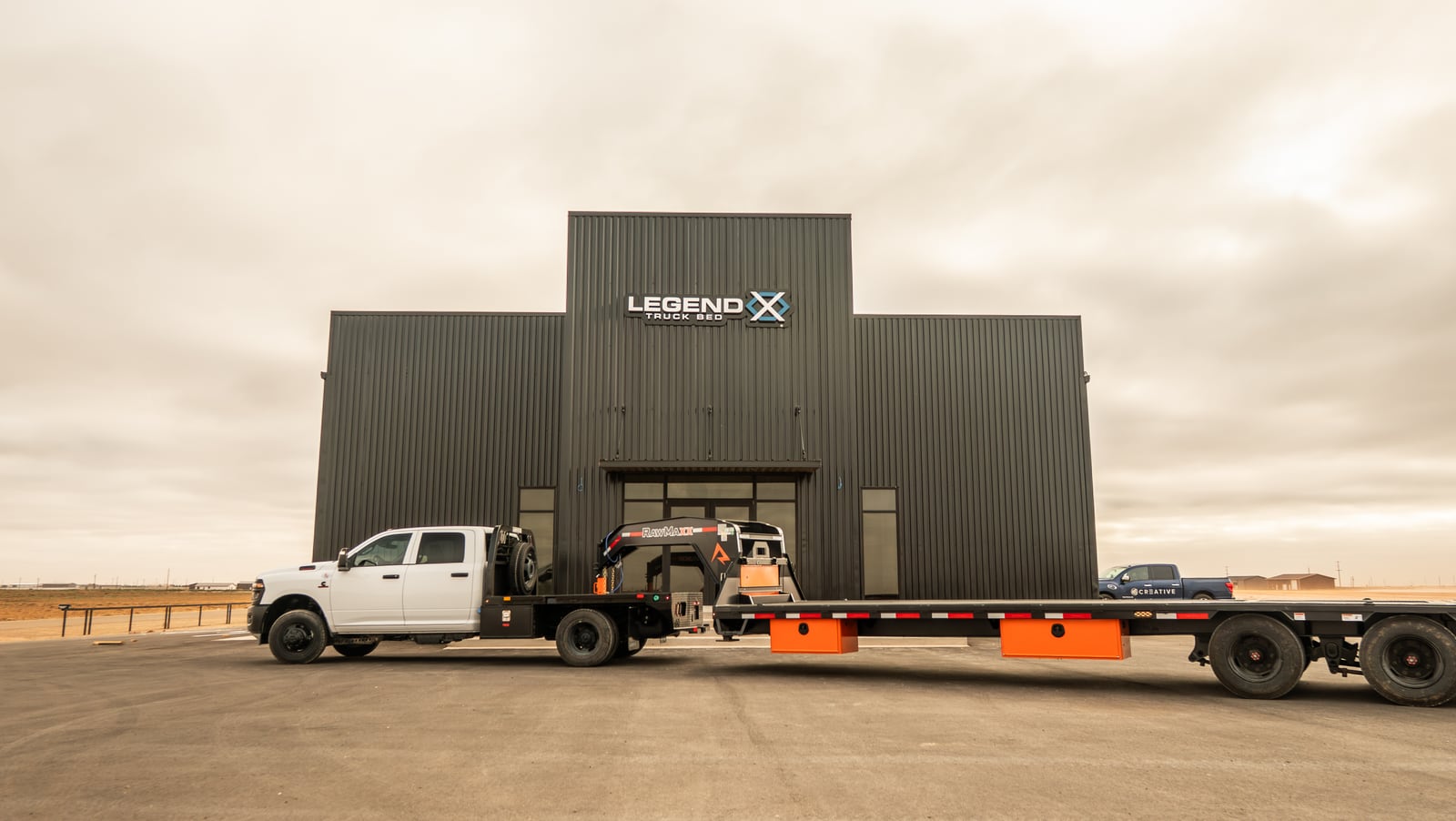

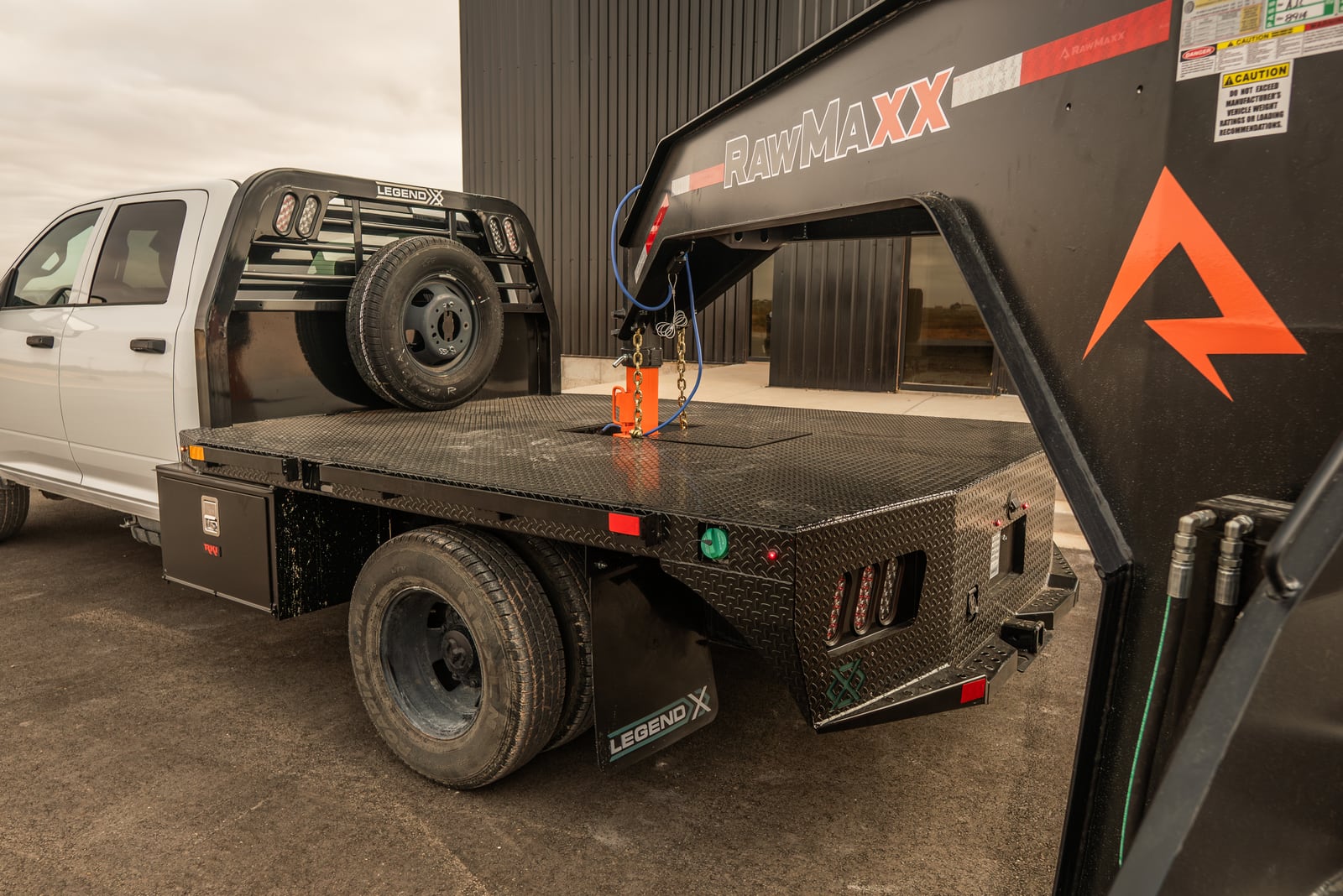

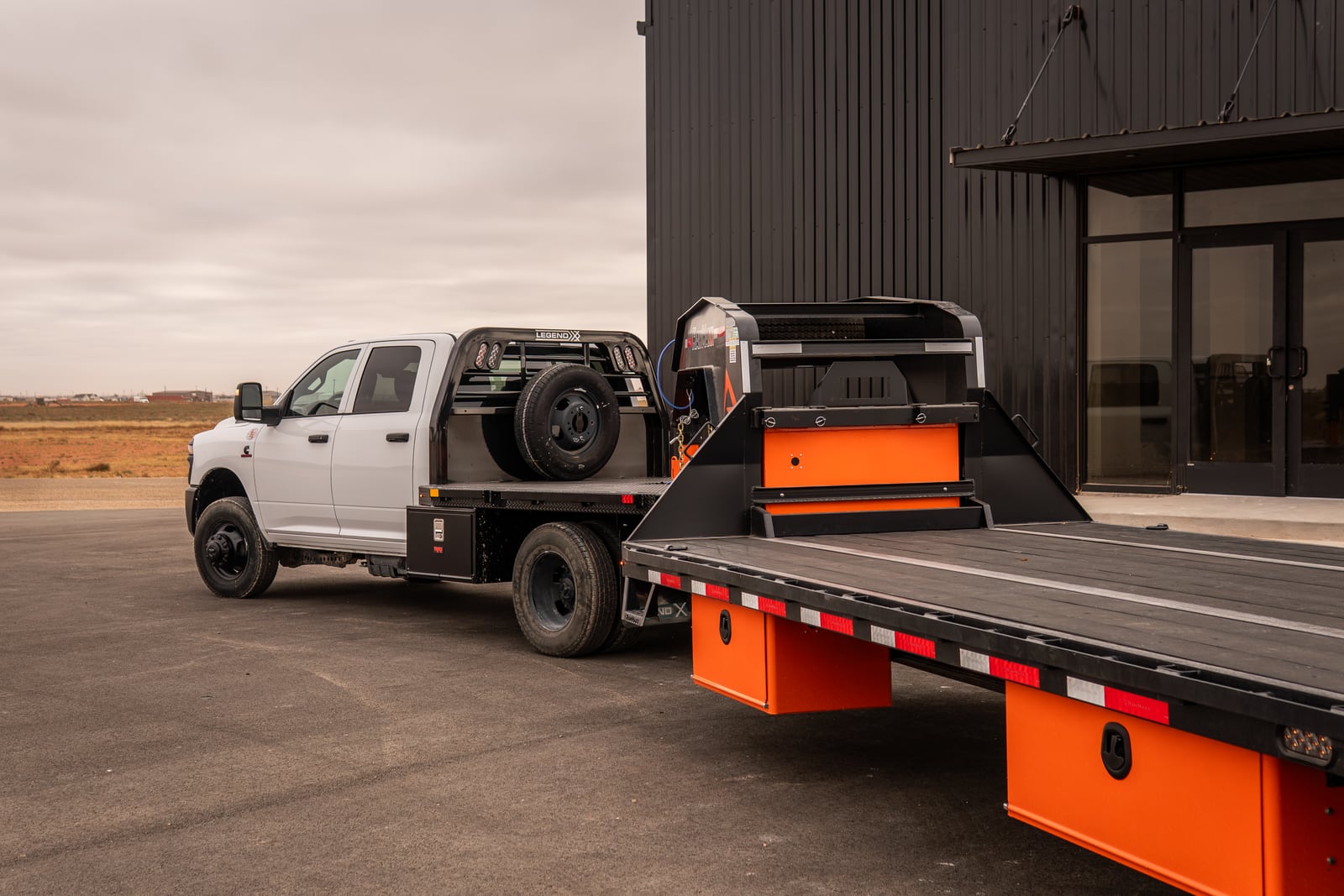

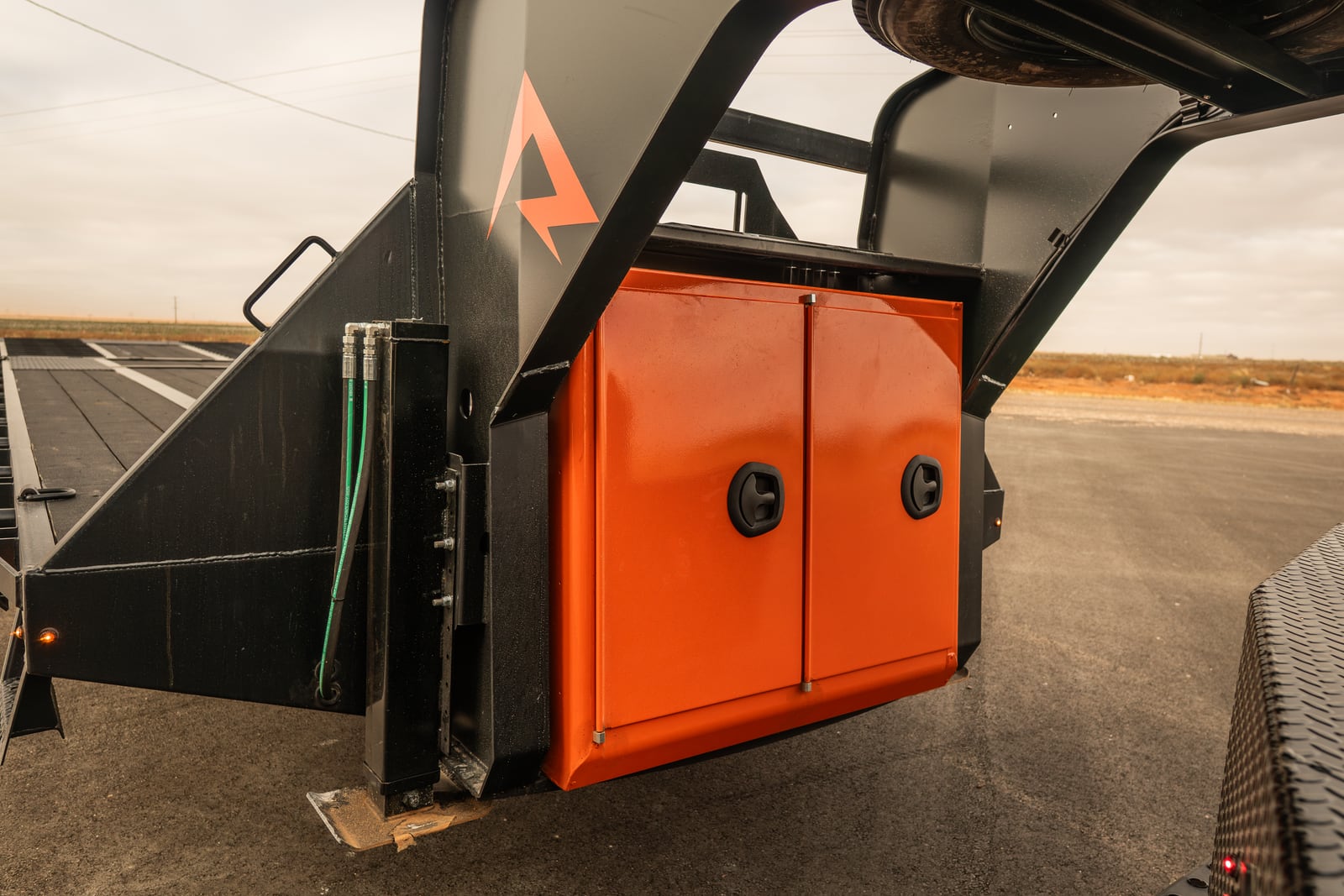

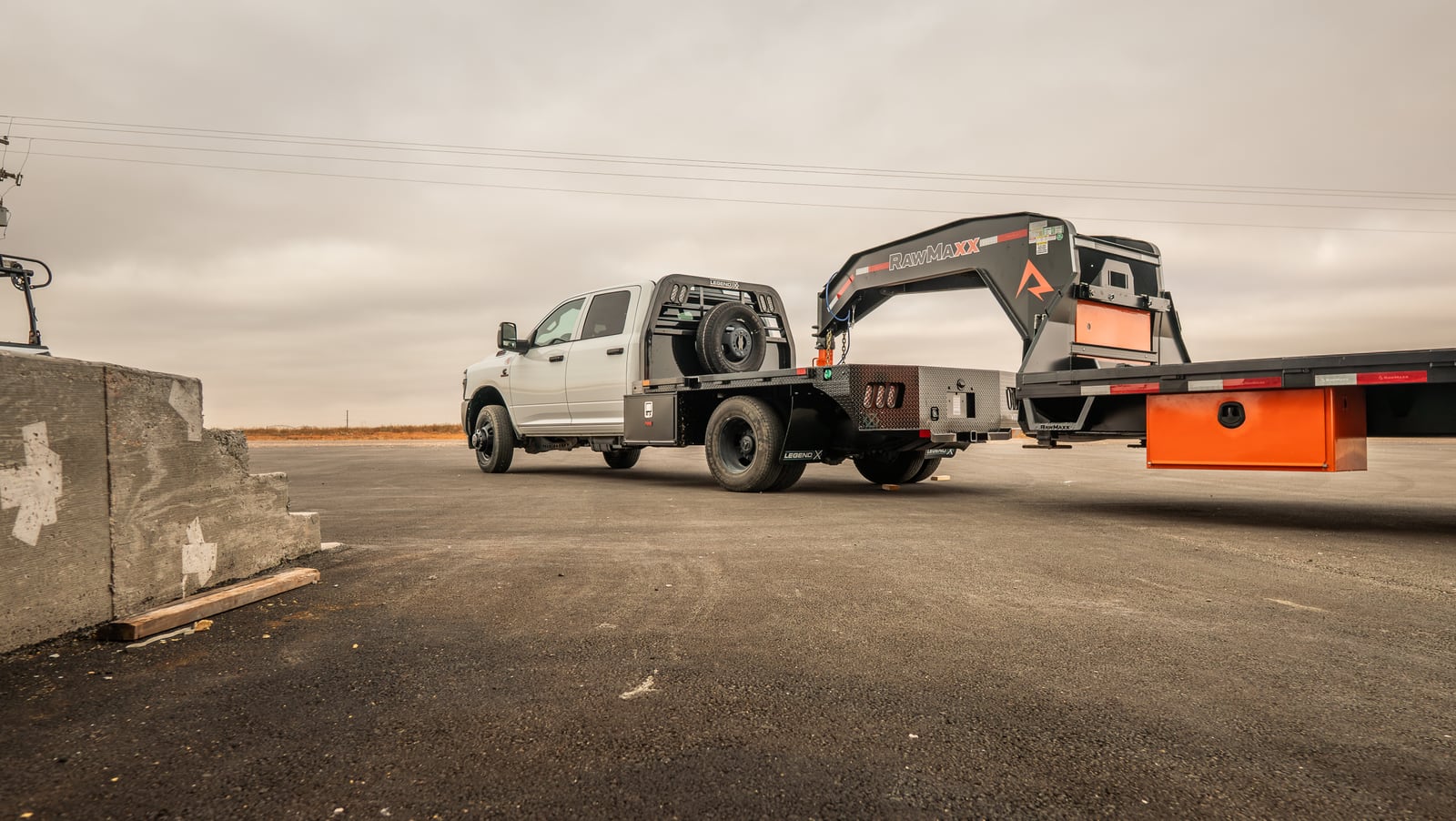

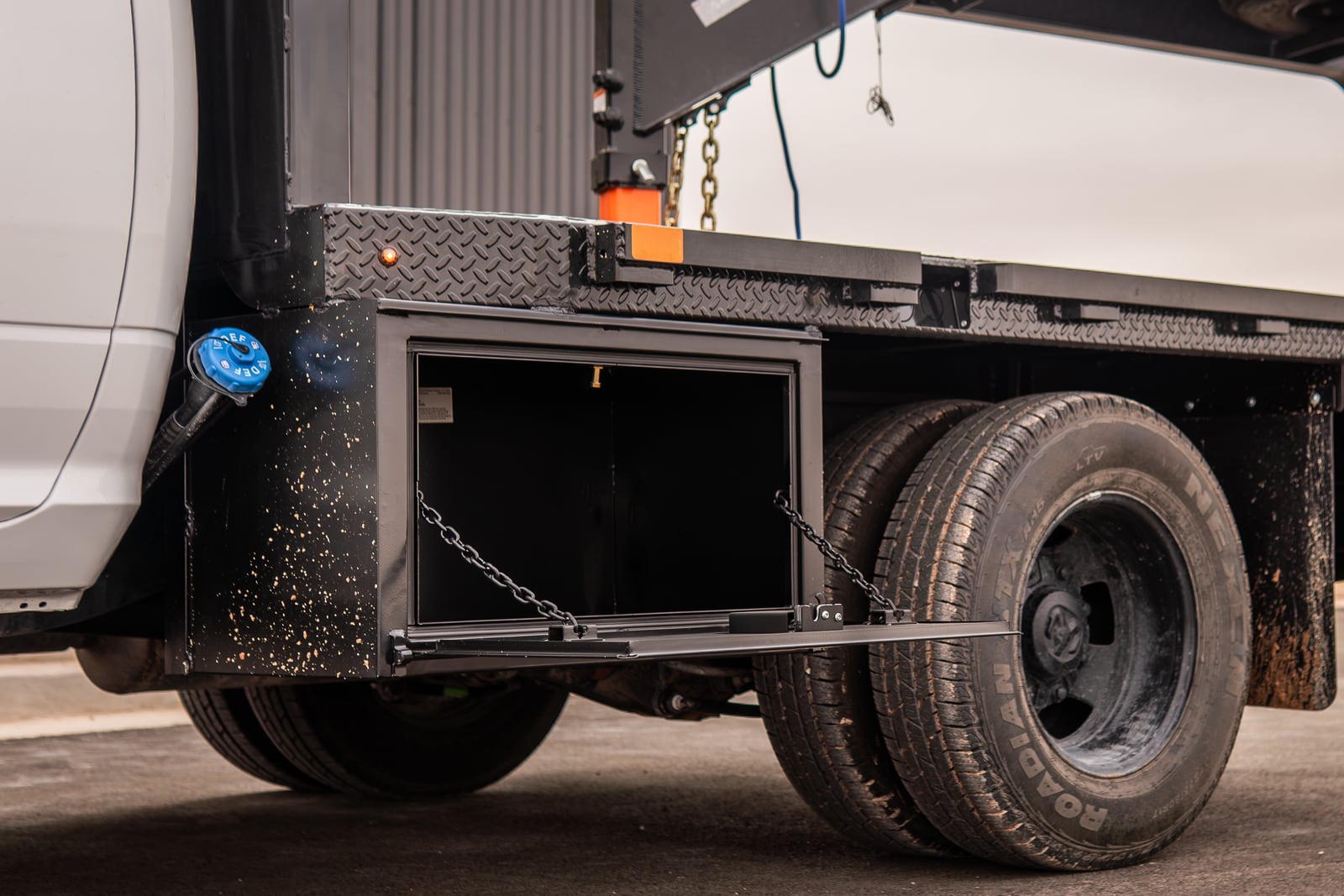

Photos
Spartan gallery.
Color Match
Color-match finish gives the bed a more custom, integrated look with your truck.
Available on All Models
Bale Spike Package
Hydraulic bale spike package with quick setup and clean under-bed storage when not in use.
Available on Spartan, Viking, Viking Pro, Apollo
3/16" Tread Plate Floor
Heavier-duty tread plate floor built for tougher loads and long-term durability.
Available on All Models
Flush Mount B&W Turnover Ball
Clean, flush-mount gooseneck towing setup that stays out of the way when not in use.
Available on All ModelsStandard on Titan
Rub Rail
Adds a durable outer rail to help protect the bed and give you a solid edge for securing cargo.
Standard on Spartan
Headache Rack Toolbox (Bolted)
Adds secure front-mounted storage for chains, straps, and everyday job essentials.
Available on Spartan, Viking, Phoenix
Square Back Bed (No Taper)
Straight rear bed design gives the body a squared-off profile and more usable rear space.
Available on Spartan, Viking
Gooseneck Trough
Integrated trough keeps the gooseneck ball area accessible while maintaining a functional deck layout.
Available on Spartan, Viking, Viking ProStandard on Phoenix
Fold Down Rail Set
Side rails add cargo control when needed and fold down for easier loading and access.
Available on Spartan, Viking, Viking Pro
Regular Rail Set
Fixed side rails provide added cargo retention with a clean, functional perimeter around the bed.
Available on Spartan, Viking, Viking Pro
Mudflaps (SRW & DRW)
Fitted mudflaps for single- and dual-rear-wheel trucks, mounted to the standard brackets.
Available on All Models
Spare Tire Mount
Keeps a spare tire securely mounted and ready when the job takes you farther out.
Available on All ModelsStandard on Cab & Chassis Models
Next step
Confirm your Spartan setup.
Share your truck details, product configuration, mounted equipment, and towing needs. A participating dealer can confirm fitment, installation, final price, and availability.
Review financing options before the final order is placed.
